8.8 Installing hob under the

hood

If you install the hob under a

hood, please see the

installation instructions of the

hood for the minimum

distance between the

appliances.

8.9 Possibilities for insertion

The panel installed below the hob must be

easy to remove and let an easy access in

case a technical assistance intervention is

necessary.

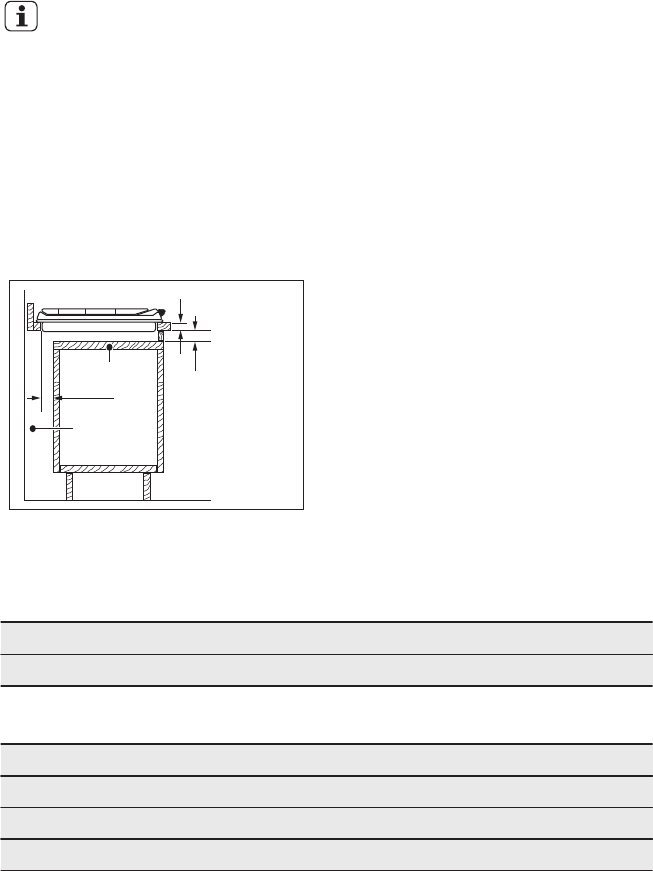

Kitchen unit with door

min 20 mm

(max 150 mm)

30 mm

60 mm

B

A

A) Removable panel

B) Space for connections

Kitchen unit with oven

The electrical connection of the hob and

the oven must be installed separately for

safety reasons and to let easy remove

oven from the unit.

9. TECHNICAL INFORMATION

9.1 Hob dimensions

Width 595 mm

Depth 525 mm

9.2 Bypass diameters

BURNER Ø BYPASS 1/100 mm

Triple Crown 56

Semi-rapid 32

Auxiliary 28

www.electrolux.com14
